SPECIFICATIONS

Application: Desktop,Laptop,Number,Tablet

Axis Body Brand: EPOMAKER

Backlight Type: MULTICOLOR

Battery Included: Yes

Brand Name: EPOMAKER

EPOMAKER Model: HE108

Full Size keyboard: Yes

High-concerned chemical: None

Interface Type: USB

Keyboard Standard: 108 Keys

Keycup material: PBT plastic

Keycup printing: Doublshot

Language: English

Operation Style: Mechanical

Origin: Mainland China

Package: Yes

Style: Standard

Switches Hot swap: Yes

Type: 2.4Ghz Wireless

Wrist Support: No

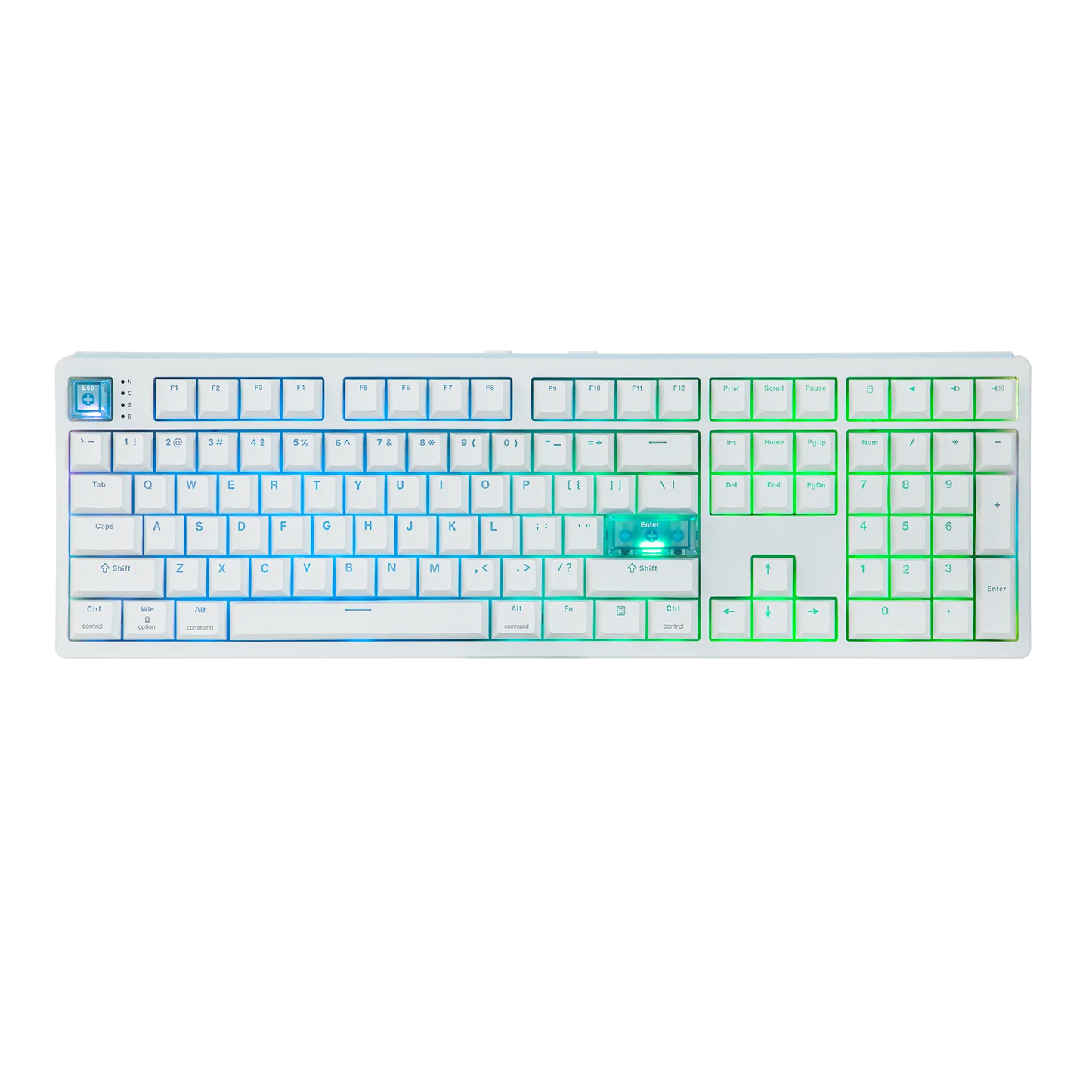

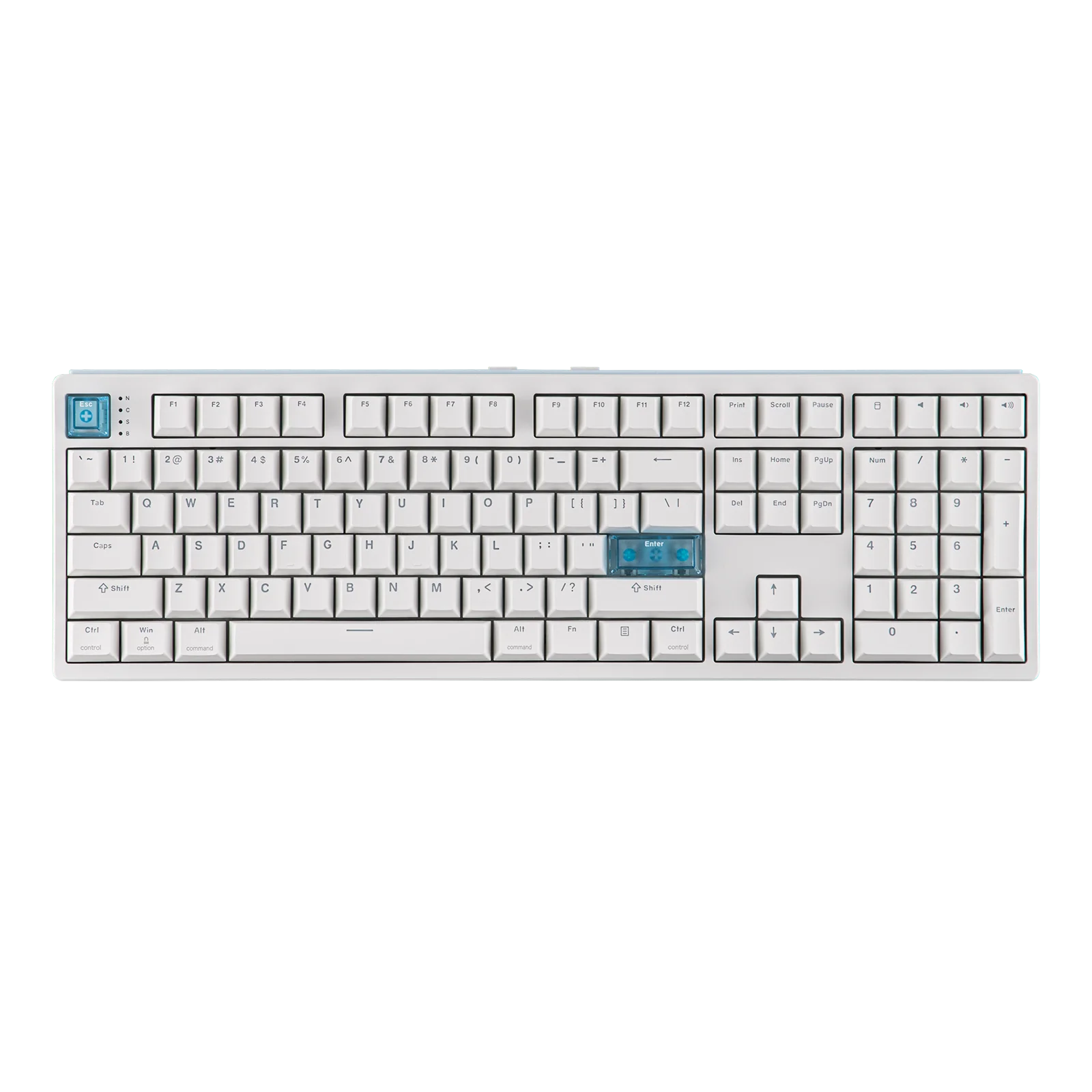

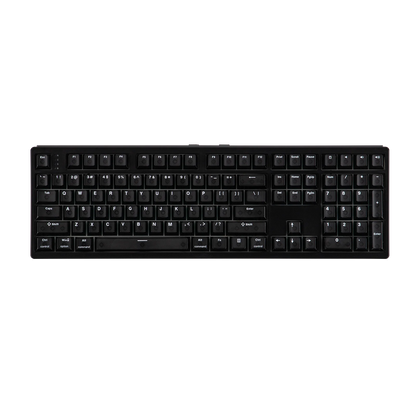

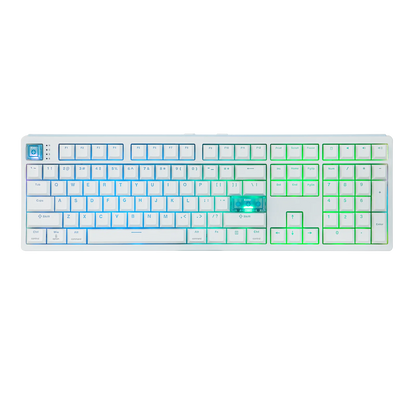

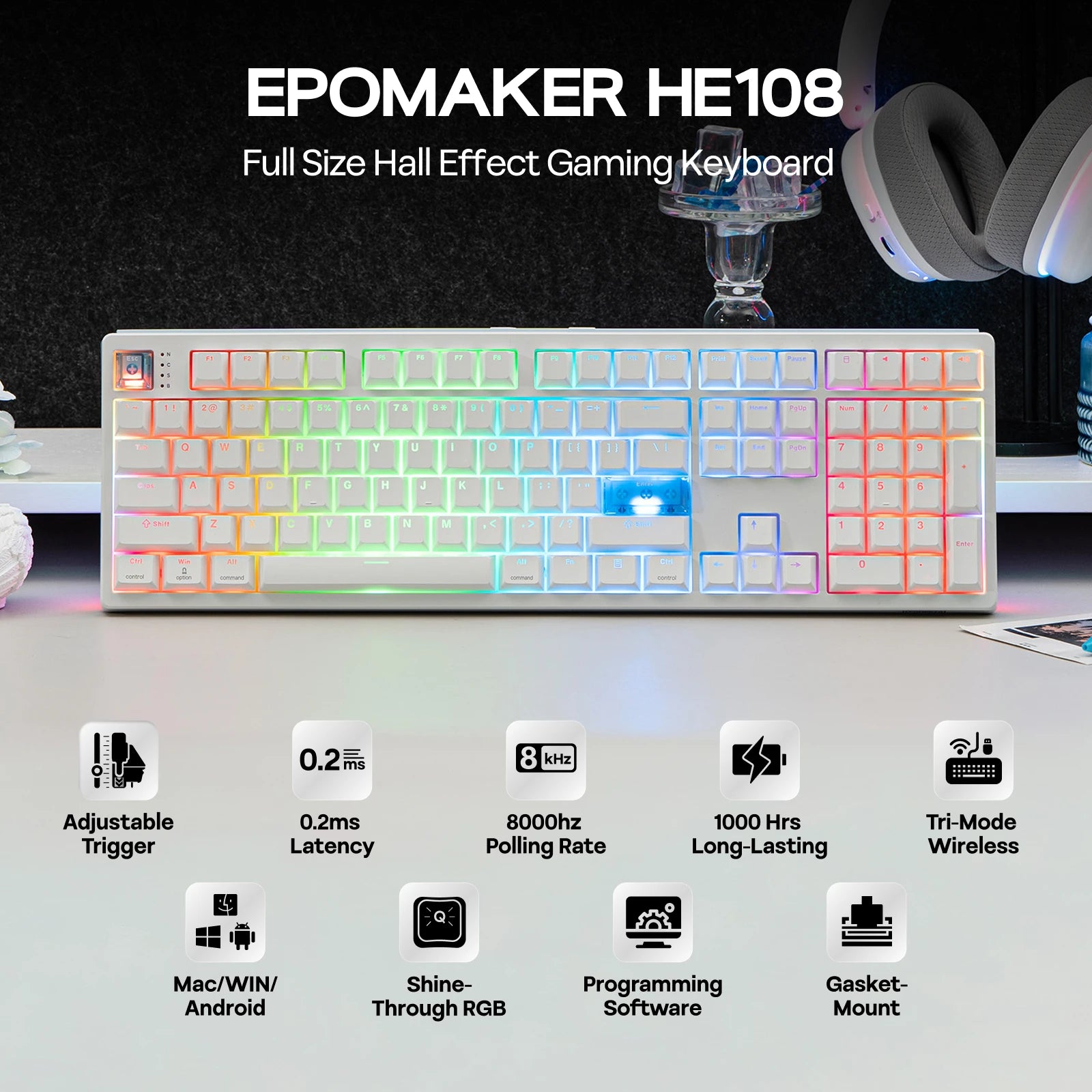

EPOMAKER HE108 Full Sized ANSI US QWERTY Layout Tri-mode Wireless Hall Effect Gaming Keyboard 128K Scan Rate & 10000mAh Battery

Level up your performance with the EPOMAKER HE108, a tri-mode powerhouse merging Hall Effect precision with a Gasket-mounted feel. Featuring a massive 10,000mAh battery for 500-hour endurance(RGB Off), it delivers near-instant 8K polling and 0.005mm adjustable actuation for elite gaming and professional tasks.

Equipped with 8K polling, 0.005mm adjustable actuation, and a massive 10,000mAh battery, the HE108 merges Hall Effect precision with a Gasket-mounted feel for elite gaming and professional creation.

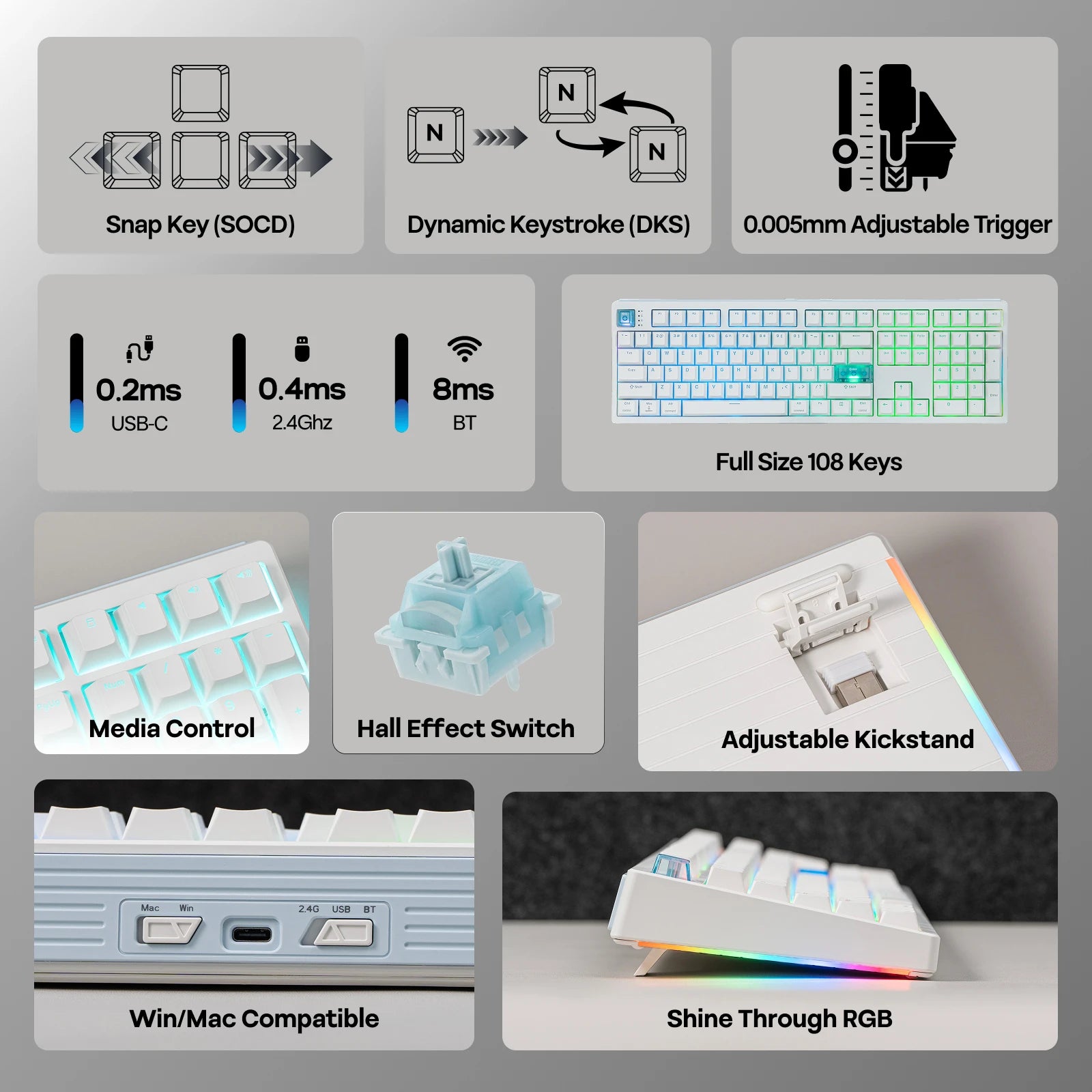

-Rapid Triggering & 8K Polling for Near-Instant Input

-0.005mm Adjustable Actuation & Snap Key (SOCD)

-Massive 10,000mAh Battery for Extended Wireless Use

-5-Layer Gasket Structure for Premium Creamy Acoustics

-Complete 108-Key Full-Sized Layout with Numpad

Rapid Triggering & 128K Scan Rate

Level up your gaming performance with more precise control, with the HE108 hall effect gaming keyboard. Experience near-instant input of keys with 8K polling rate, as the flick of your finger transform into on-screen action in mere 0.2 millisecond. Outmanoeuvre opponents with the high 128khz per-key scan rate as complex sequences are captured flawlessly in less than a second.

2.4Ghz/BT/Wired Gaming with 10000mAh Battery

Unlocking the realm of unfettered movement and sustained performance with this tri-mode wireless keyboard, for up to 500-hour (RGB Off) wire-free usage with the outstanding 10000mAh battery. Experience seamless transition between up to 5 paired devices under cable, 2.4Ghz and Bluetooth modes, with the on-board memory of HE108 custom keyboard that remember your personalized setting for every hall effect magnetic key.

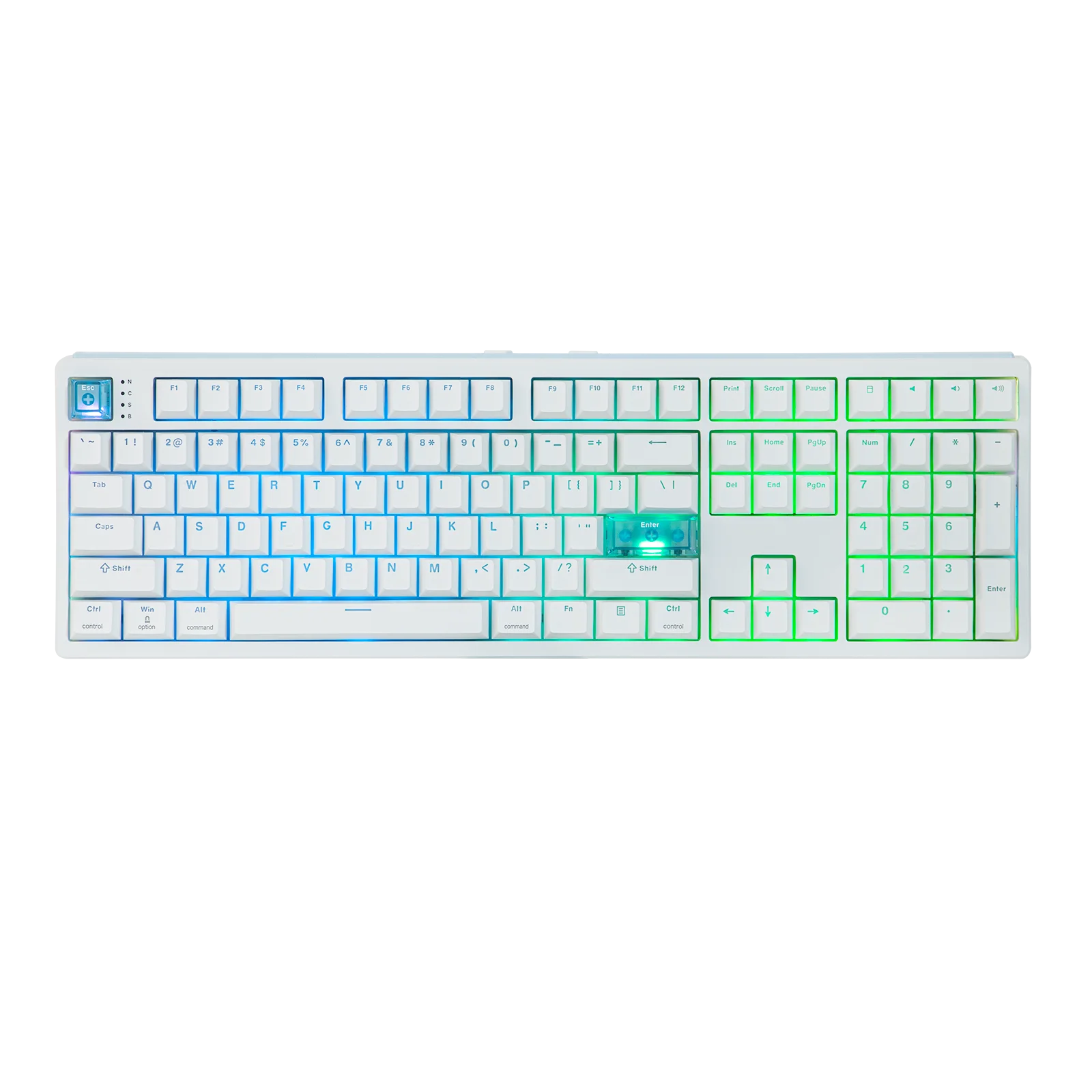

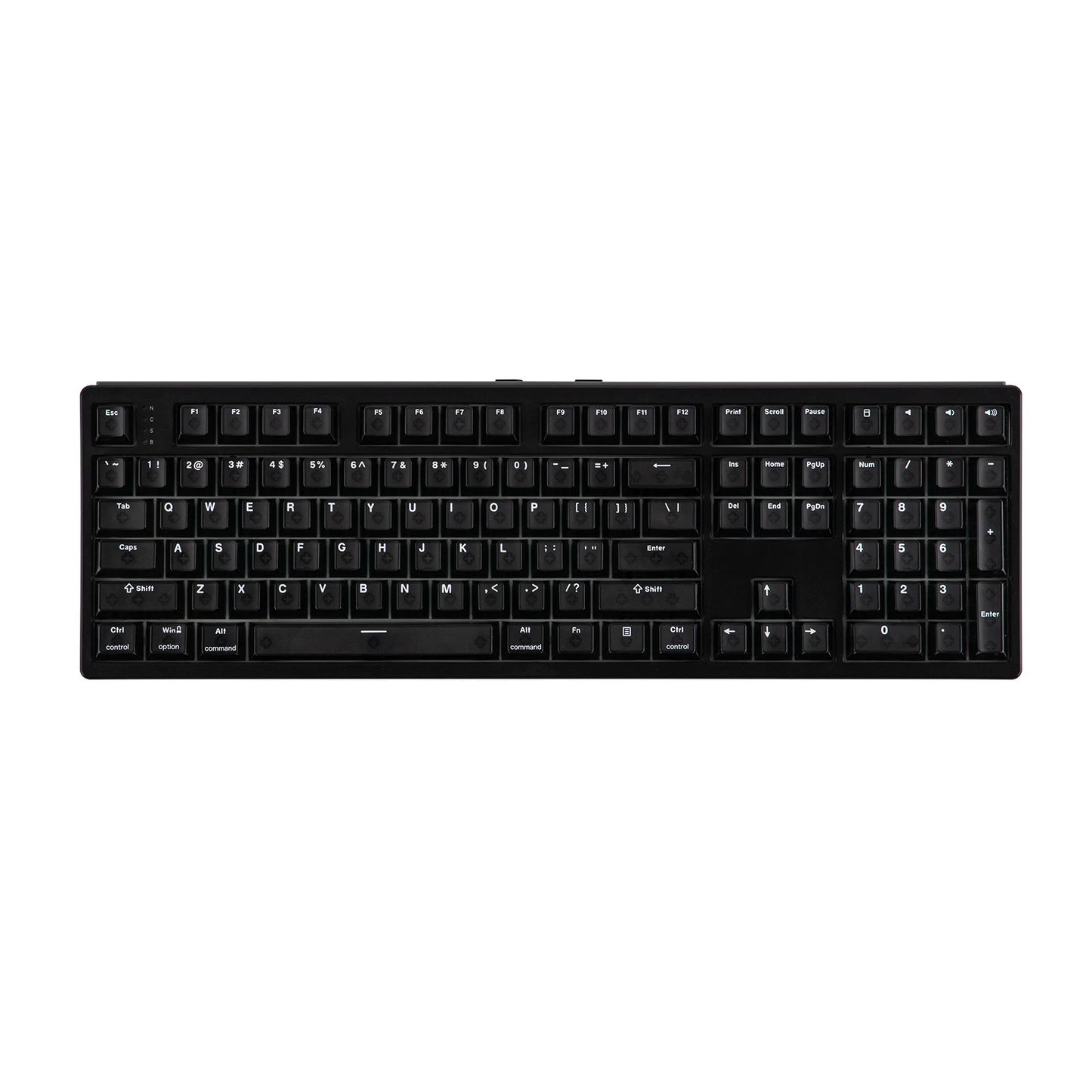

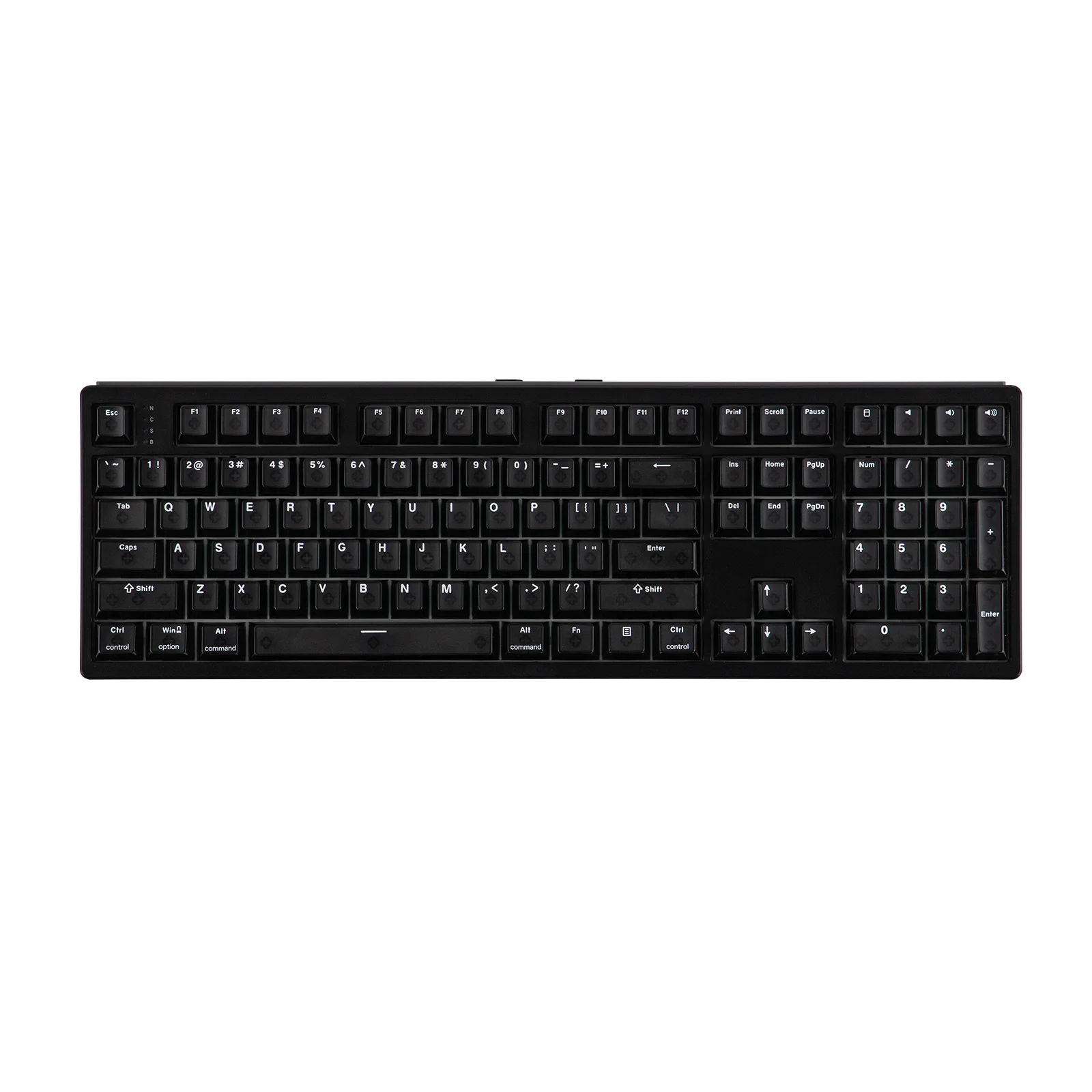

108-Key Full-Sized for Mac/WIN

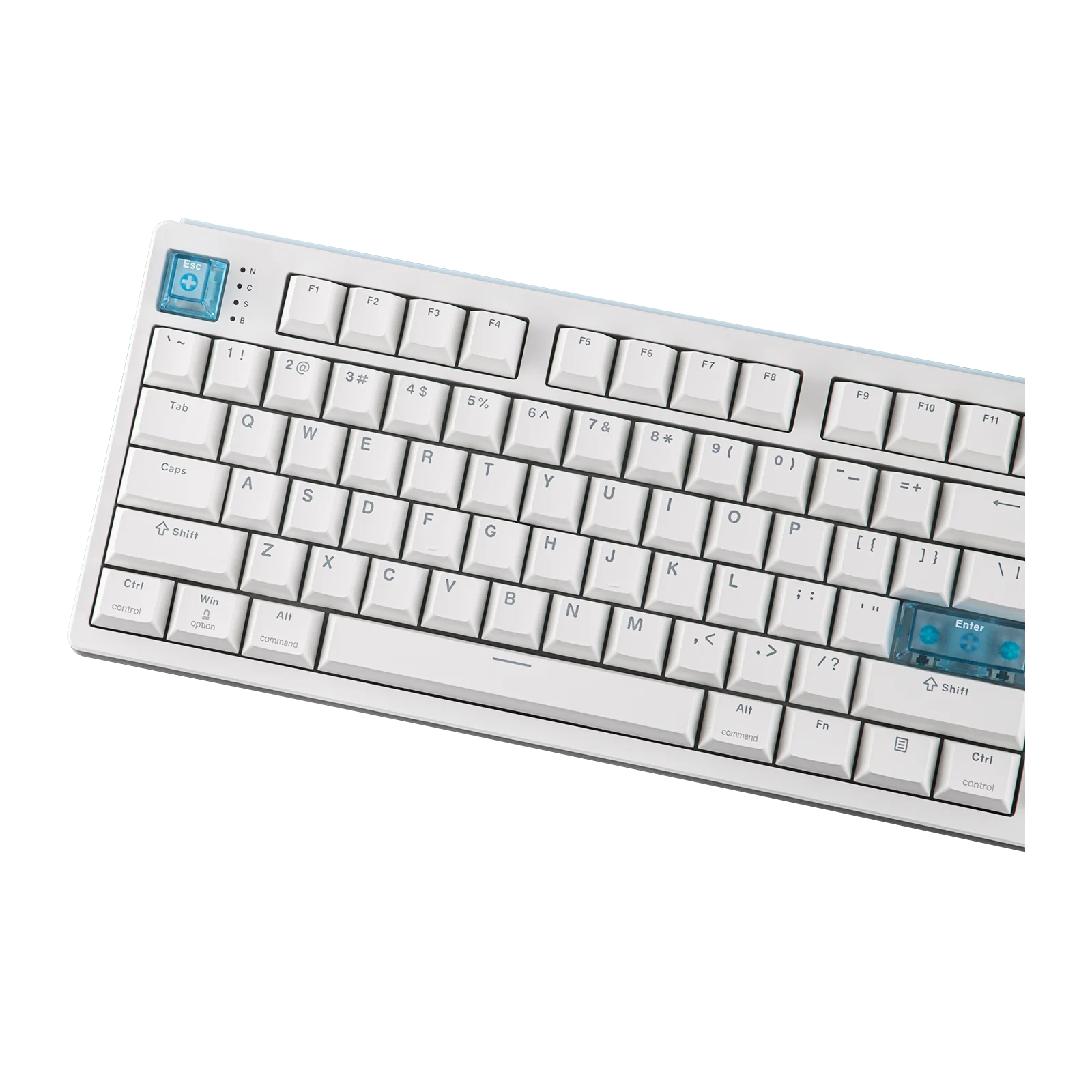

Engineered for competitive gaming and demanding office tasks, the EPOMAKER HE108 is packed with user-friendly design. Featuring 108 shine-through double-shot PBT keycaps for truly backlit RGB with clear visibility under light and at dark, the HE108 full-sized gaming keyboard weighs over 1.67kg for un-moving stability and durability. For hybrid users across Mac/iOS and PC, the WIN/Mac compatible software and the mac sign included keycaps makes multi-device usage swift and easy.

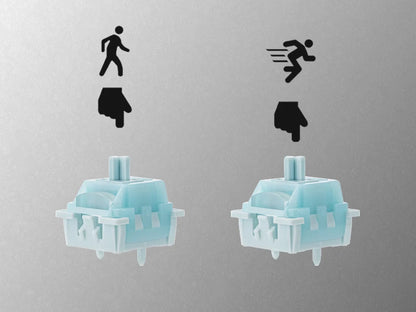

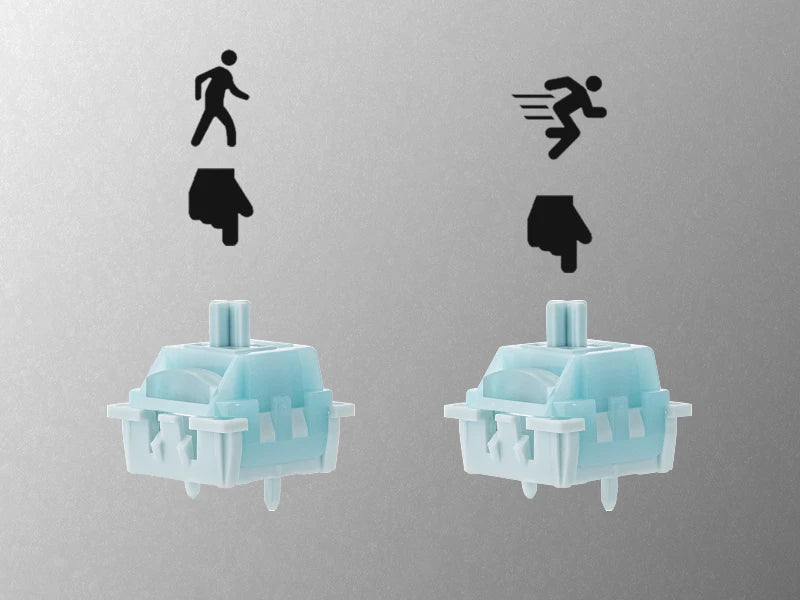

0.005mm Adjustable Actuation

Game in your full potential with the responsive HE108 wireless gaming keyboard. Adjust dead zone from 0 to 0.3mm with the WIN/Mac compatible software, for near-instantaneous actuation in clutch gaming moments or flawless coding in writing marathons. With per 0.005mm adjustable actuation in rapid triggering mode, customize exactly how deep or shallow to press the key for registration or end of input, and switch easily between typo-free 3.3mm to near-instant 0.1mm.

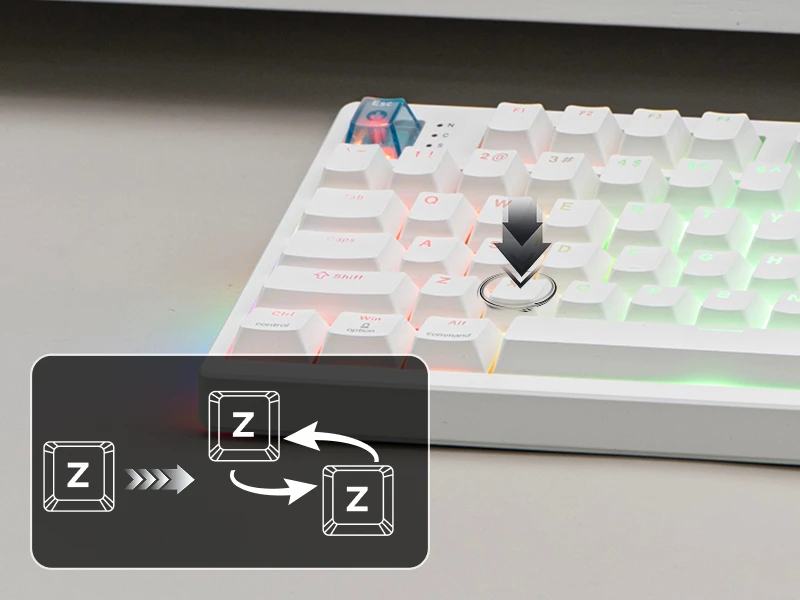

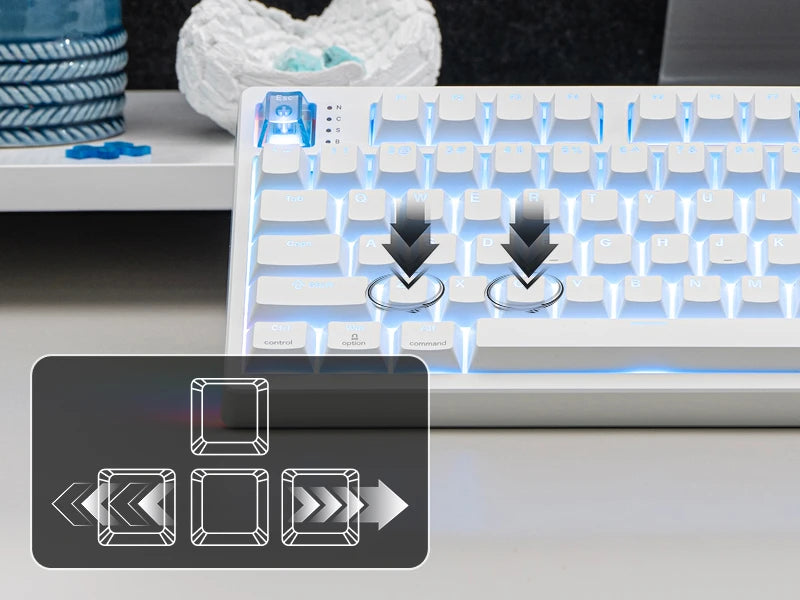

SOCD, DKS & MT

Rejoice in the astonishing power of HE108 custom keyboard, for unbeatable performance in FPS, MOBA, Rhythm and any game that aim for speed and accuracy. The revolutionary Snap Key (SOCD) prioritize the latest key press of a pair of keys (e.g. A and D), ensuring every movement is executed in time without your character freezing on the spot, while the DKS and MT function enables true analog input, where 4 actions can be integrated into one keystroke with shallow/deep press and release.

5-Layer Sound Optimized & Gasket-Mount

Looking for the satisfying thocky thuds of gasket mechanical keyboard but want to experience the advanced feature of hall effect keyboard? The HE108 creamy keyboard delivers both with sophisticated inner design. The soft gasket, separating the flex-cut FR4 PCB with hall effect sensor from the thick ABS plastic shell, for durability and to rid the distracting loud clatter from each key press, while the PORON, IXPE and latex layer further lower noise level by filling up the hollow space.

Specifications:

Brand: EPOMAKER

Model: HE108

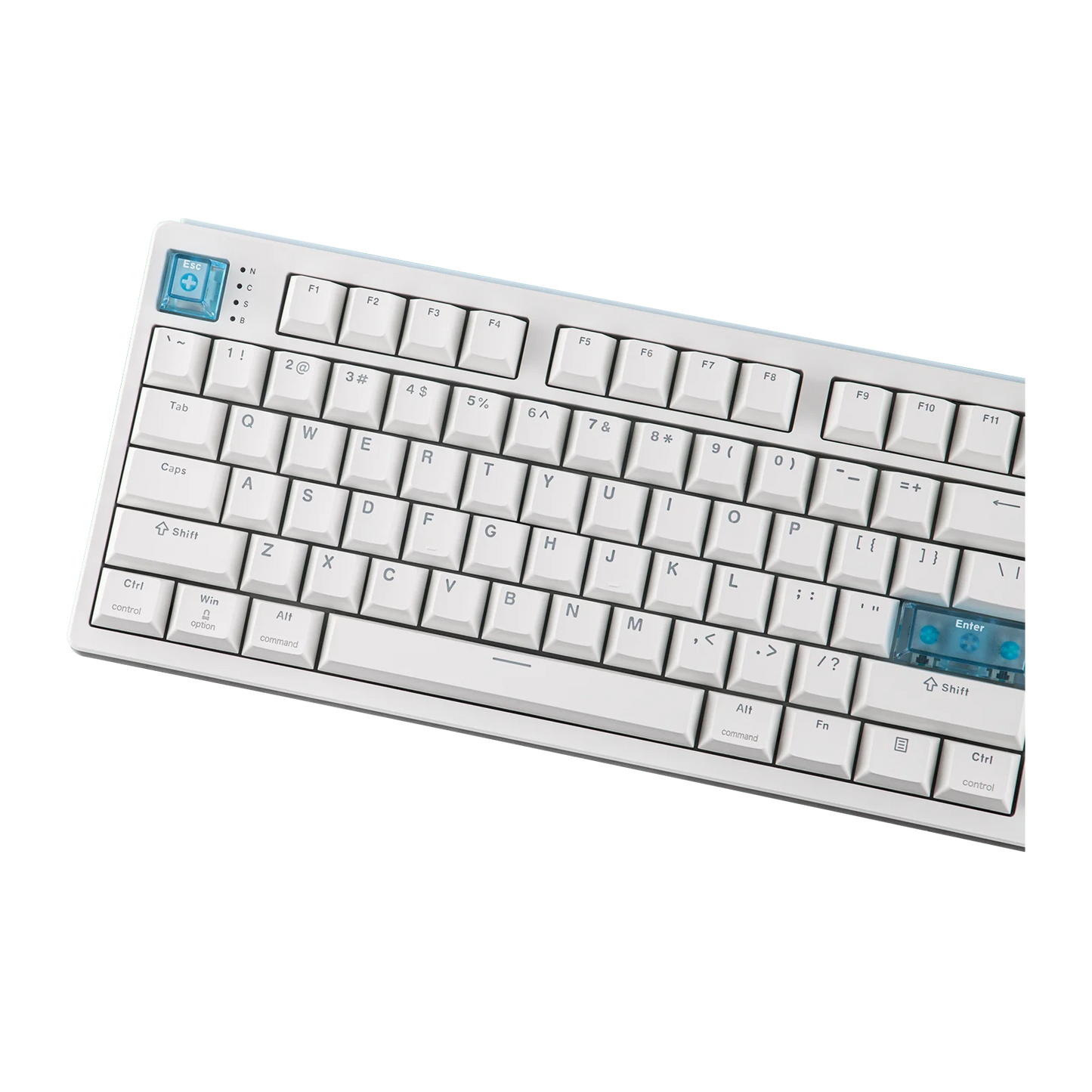

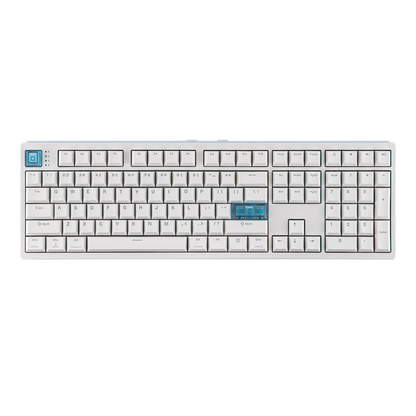

Layout: Full Sized Gaming Keyboard, 100% Layout, US QWERTY ANSI Layout

Number of Keys: 108 Keys

Battery: 10000mAh Rechargeable Battery

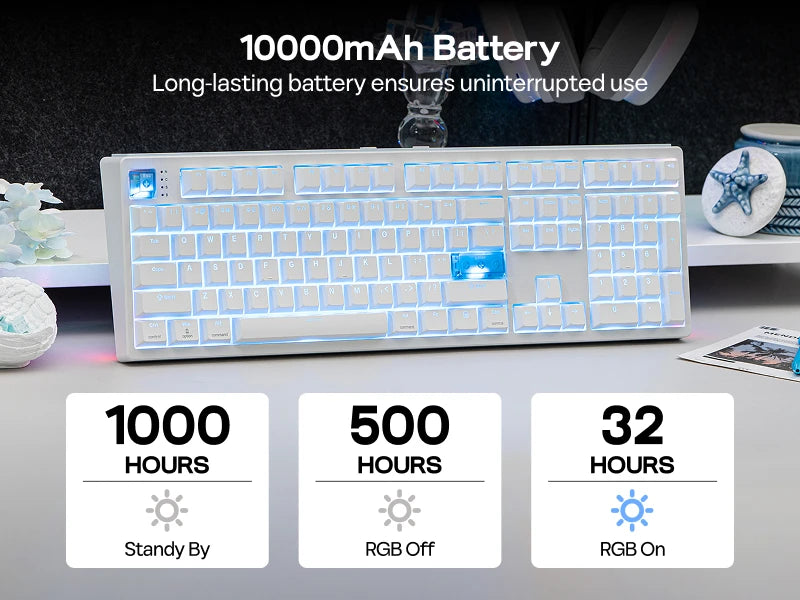

Battery Life: 32 hours (RGB On), 500 hours (RGB Off), 1000 hours (stand by)

Connectivity: Tri-Mode 2.4Ghz/BT/Wired

Compatibility: Mac/WIN/Android

Mac Modifier Print: Yes

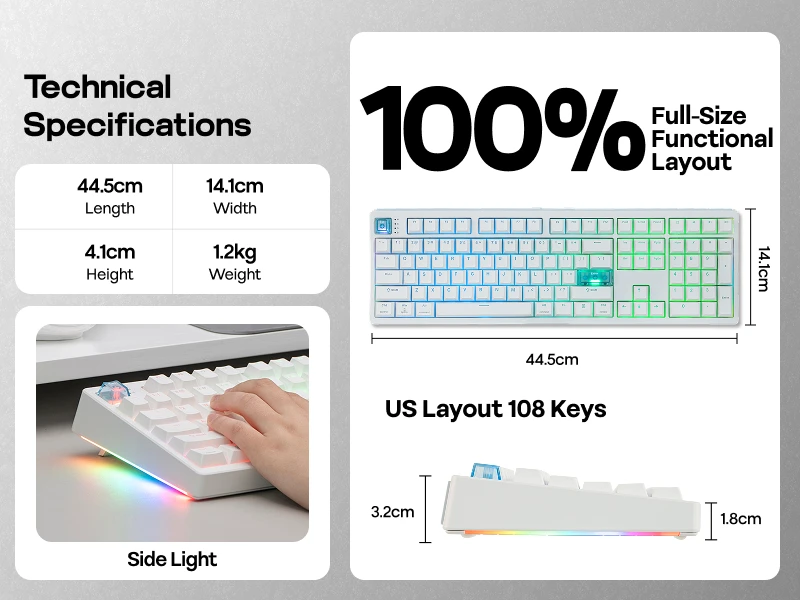

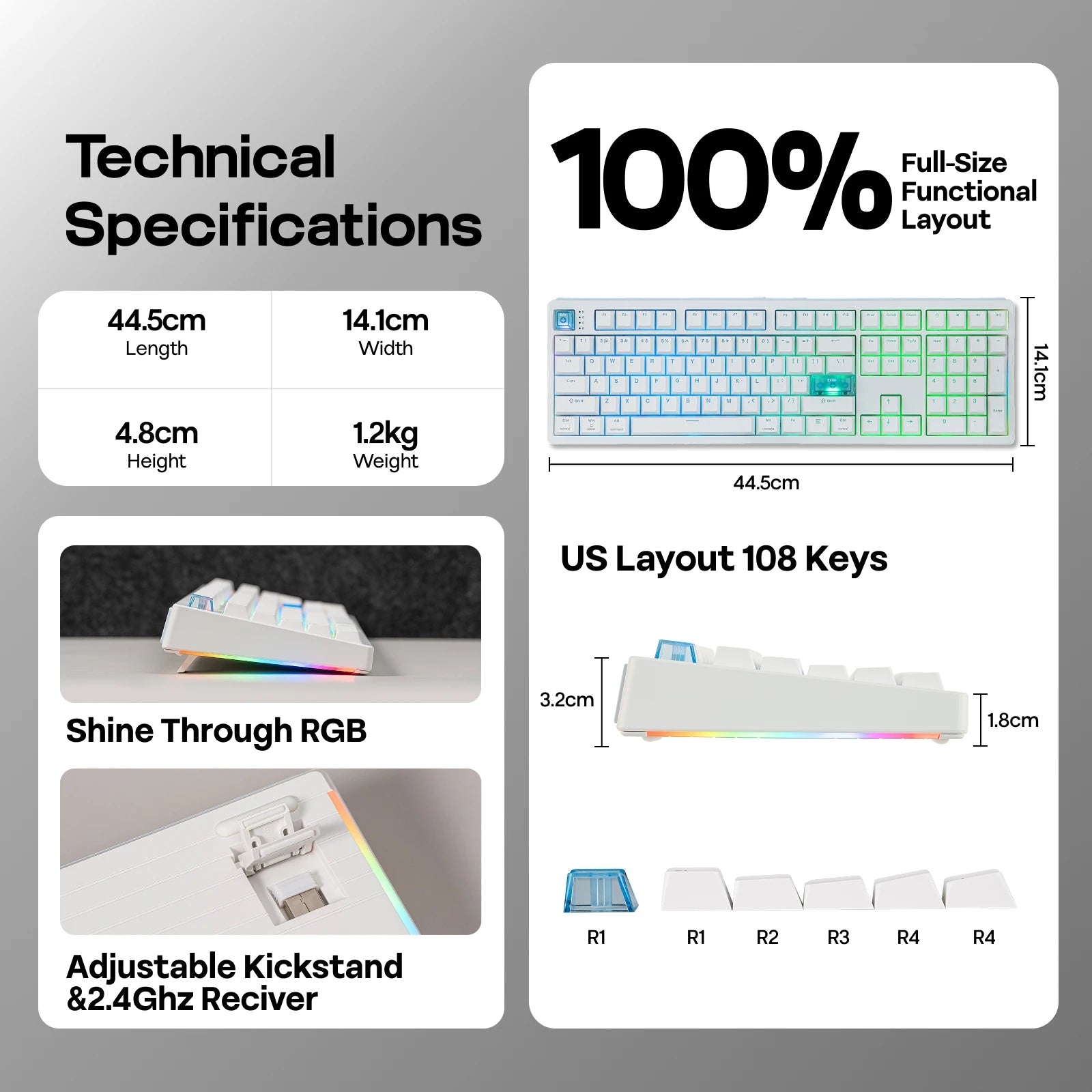

Keyboard Dimensions: 49*18.6*5cm

Keyboard Weight: 1.67kg

Front Height: 1.8cm

Back Height: 3.2cm

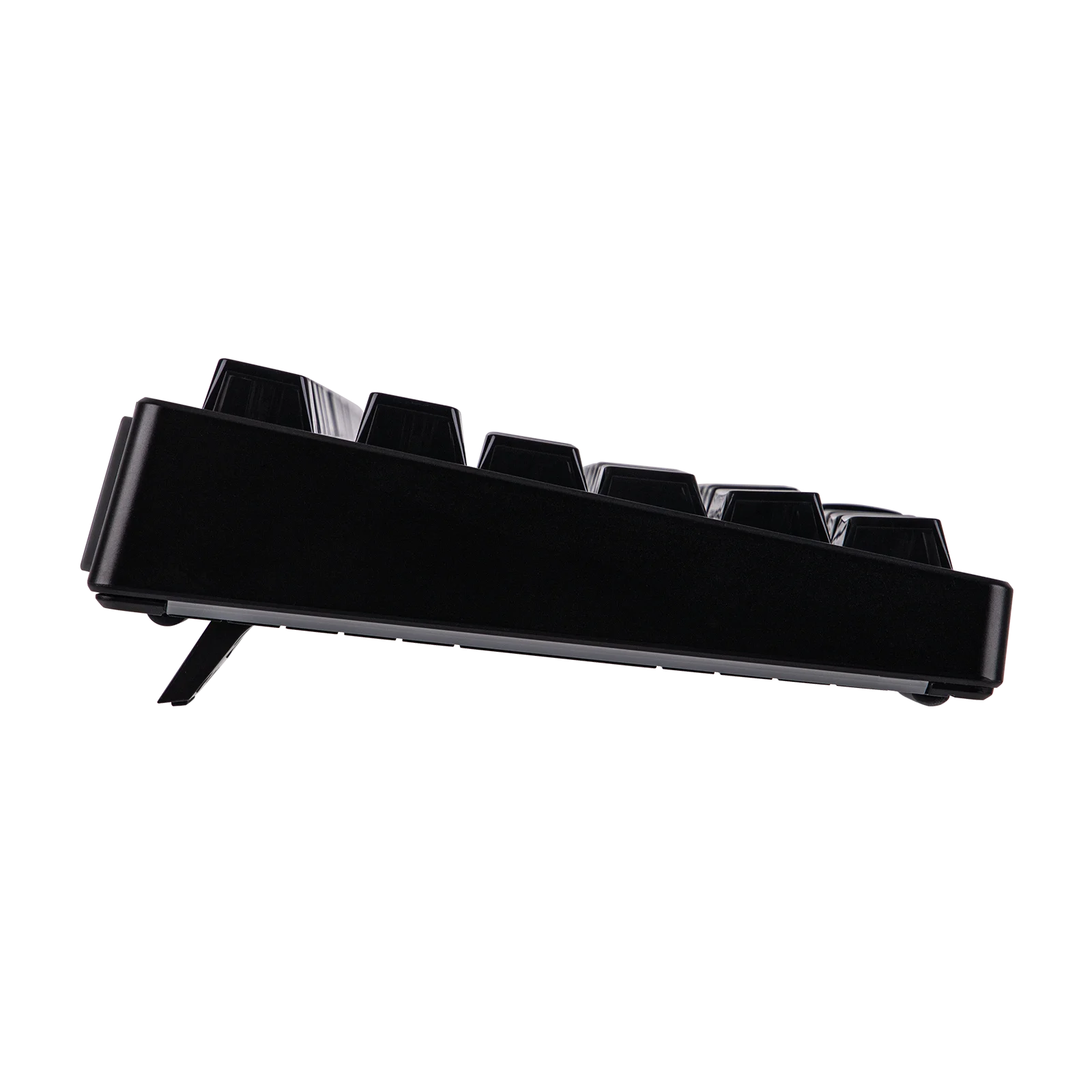

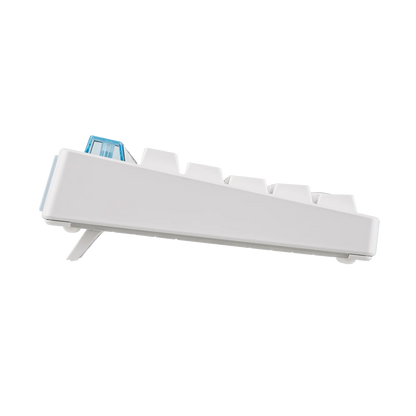

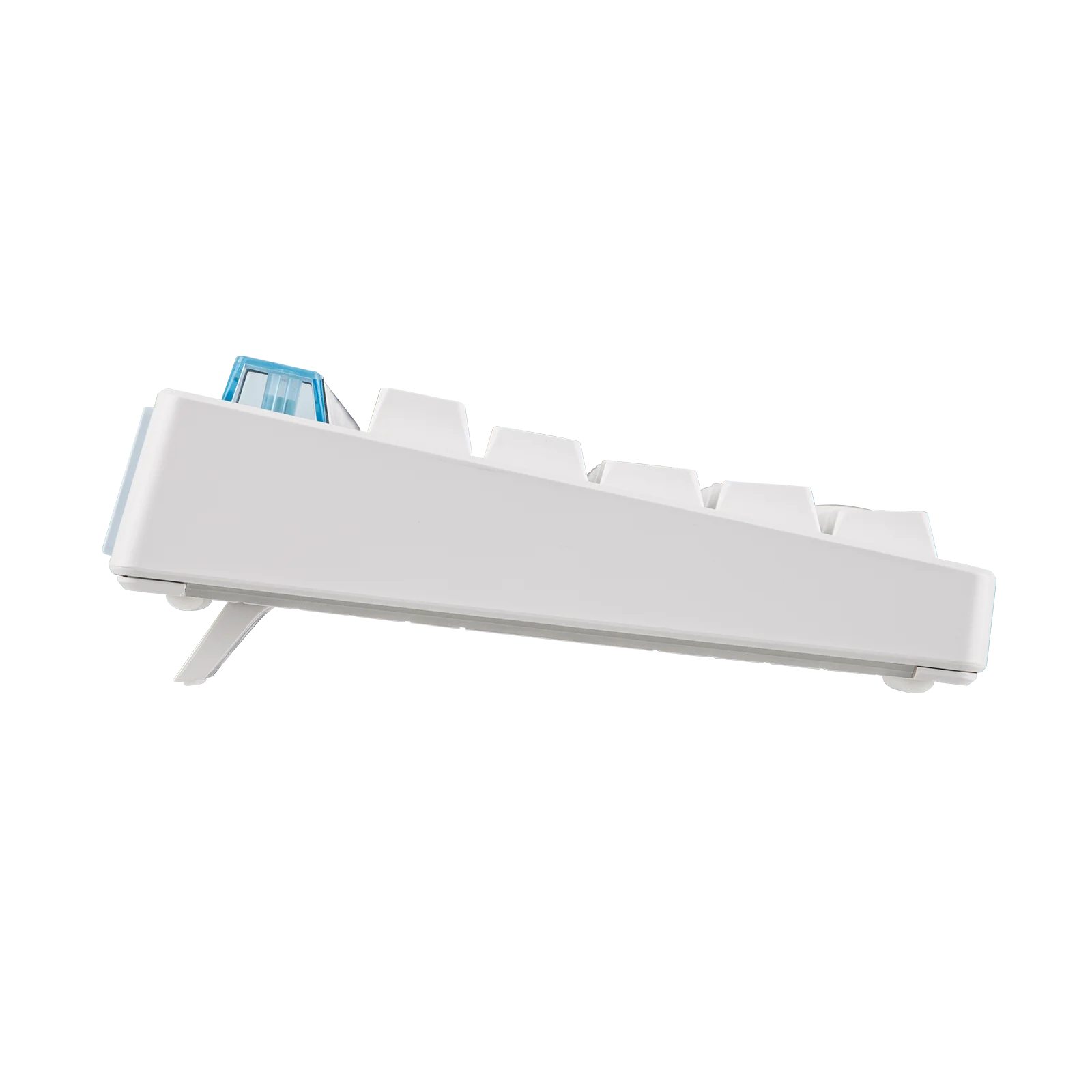

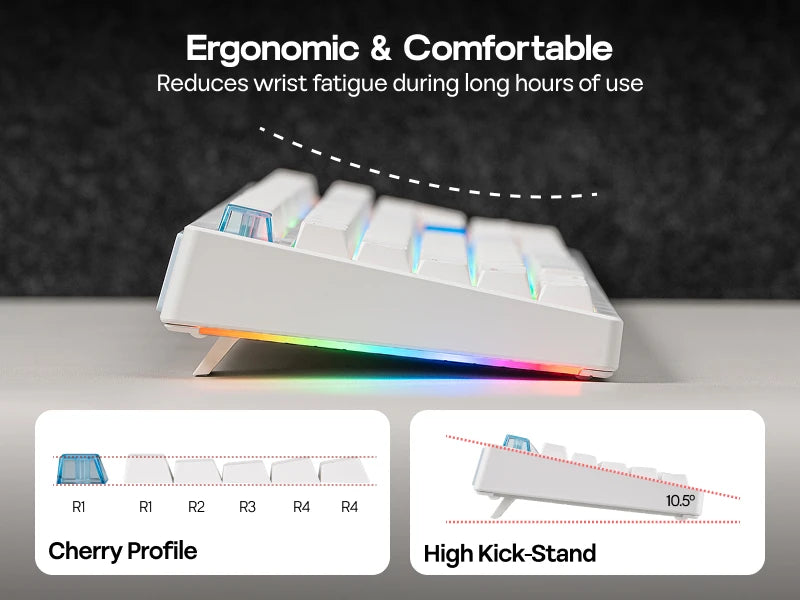

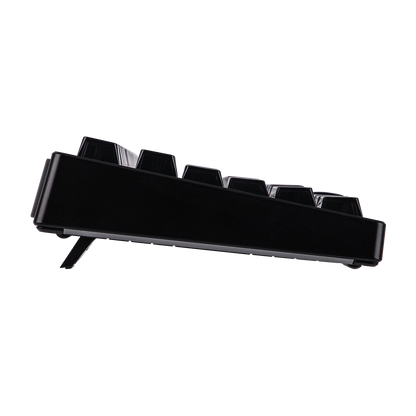

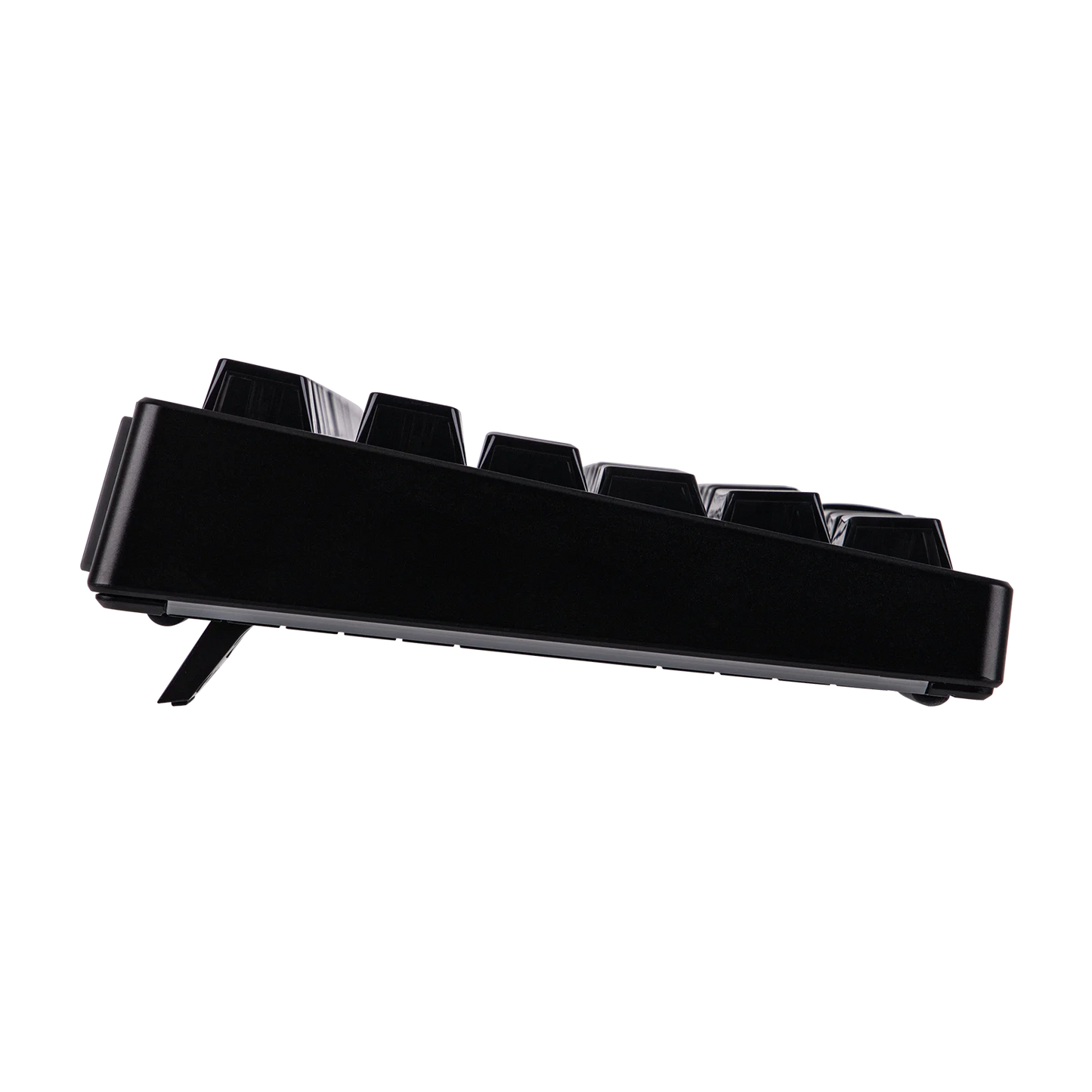

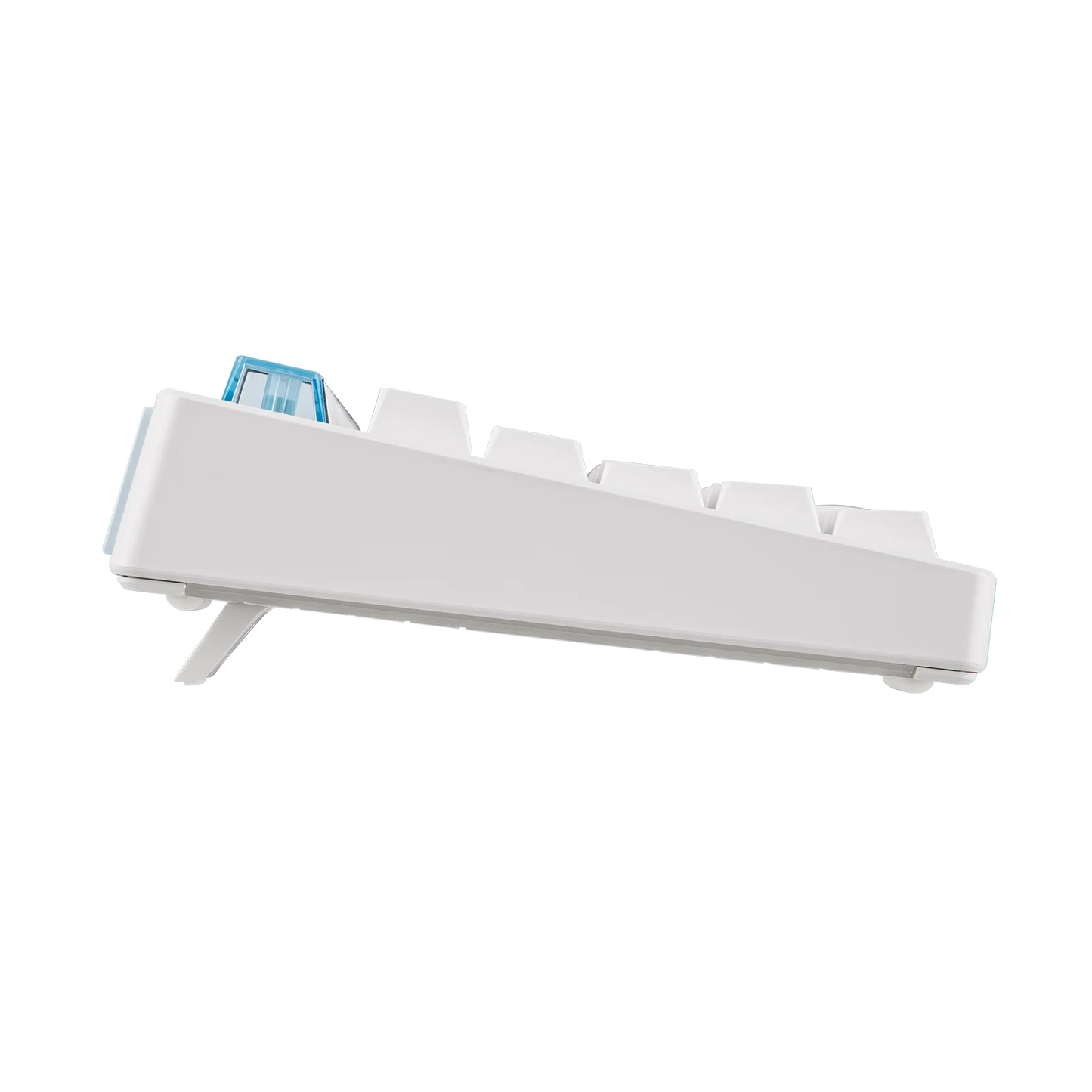

Typing Angle: 6 degrees, 8 degrees, and 10.5 degrees.

Case Material: Thick ABS Plastic

Plate Material: PC Plastic

Flex-Cut: Yes, the HE108 has a flex-cut plate in PC and a flex-cut PCB board in FR4.

Stabilizers: The EPOMAKER HE108 has finely tuned plate-mounted stabilizers and is not compatible with PCB or screw-in stabilizers.

Mounting Structure: Gasket-Mounted

Sound Dampening: 5 Layers of sound dampening, including PORON sandwich foam, IXPE switch pad, Sound-Enhancement PET, PORON and latex switch socket foam, and bottom silicone.

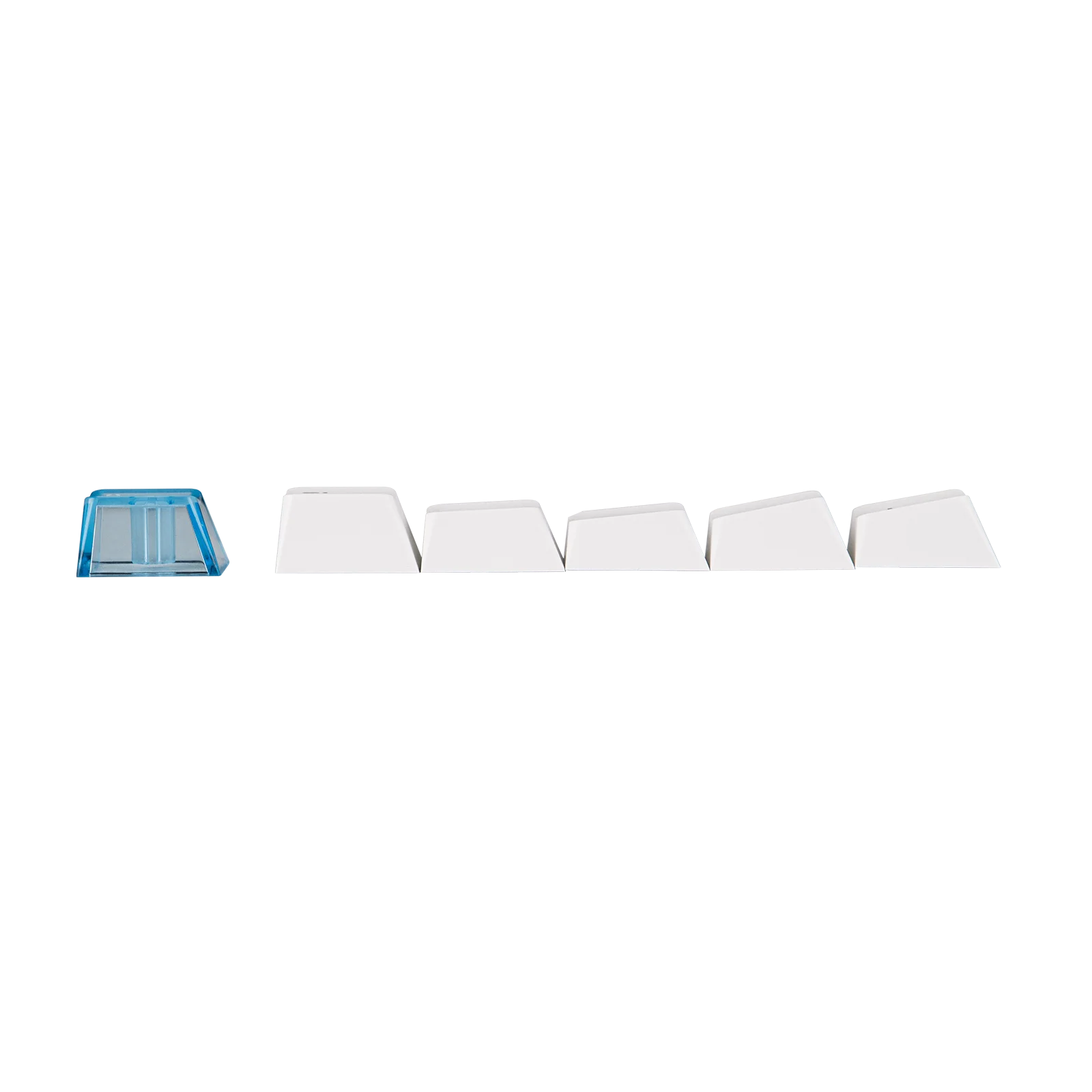

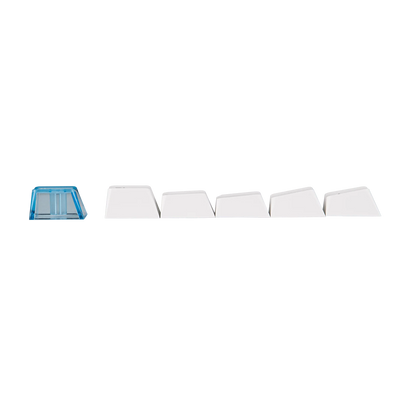

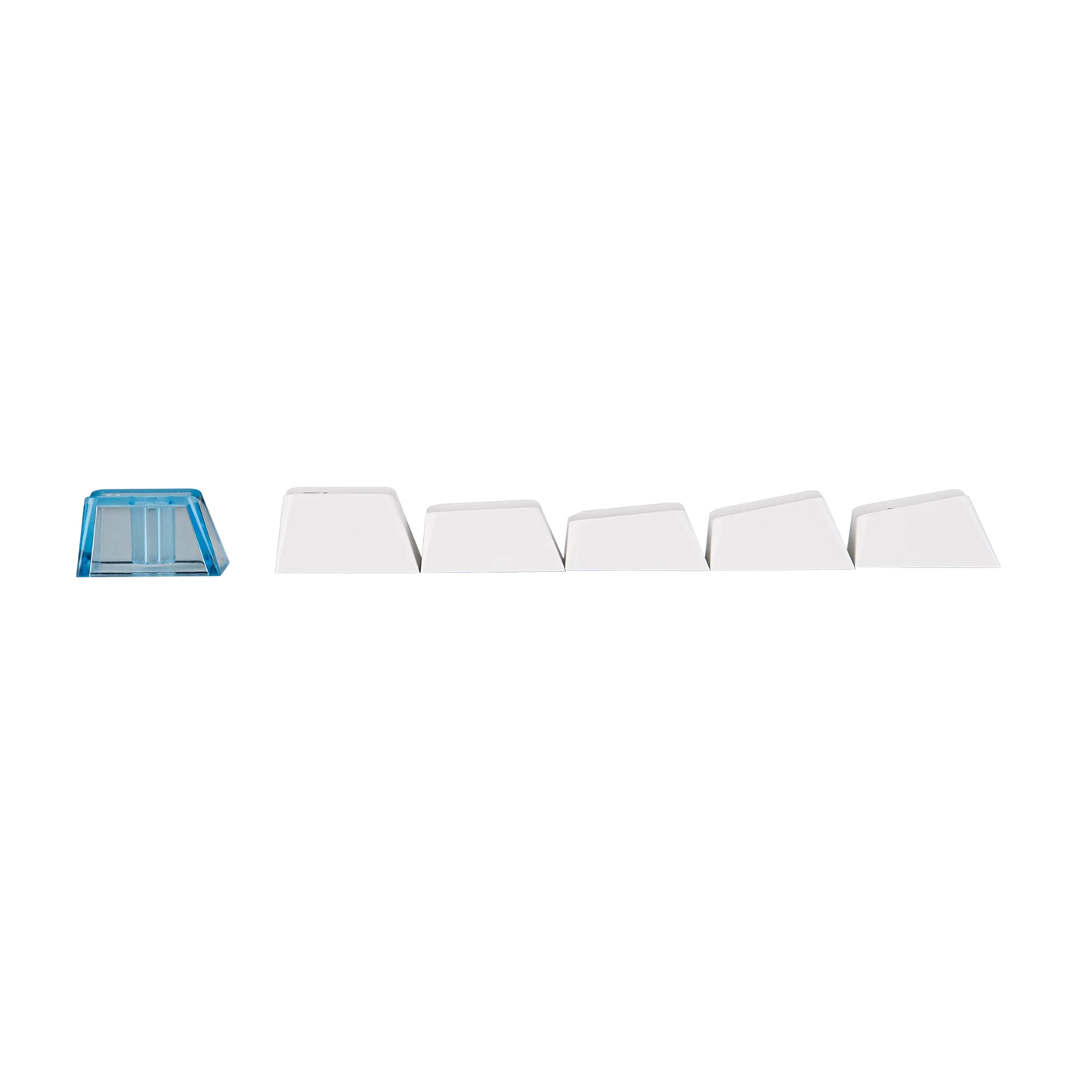

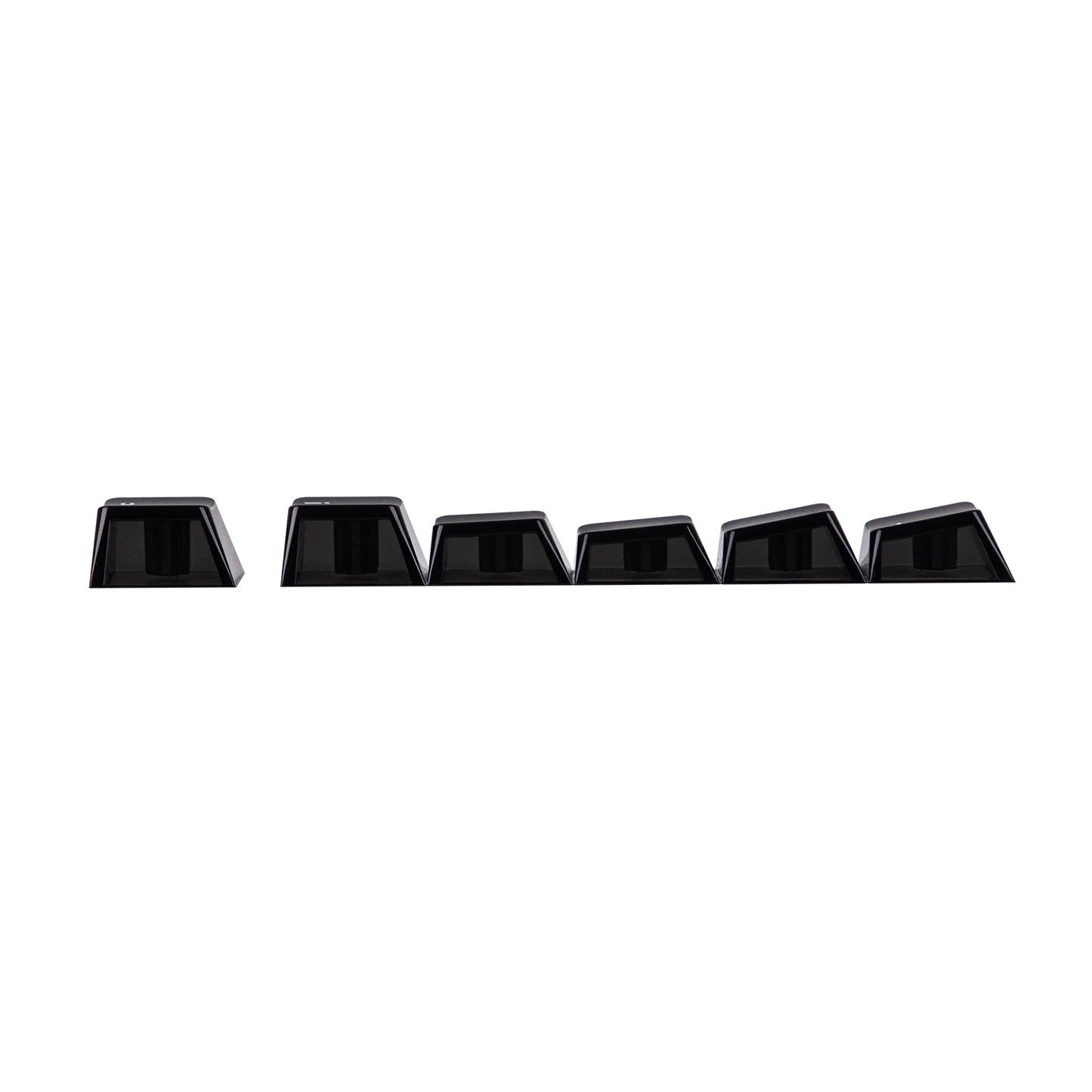

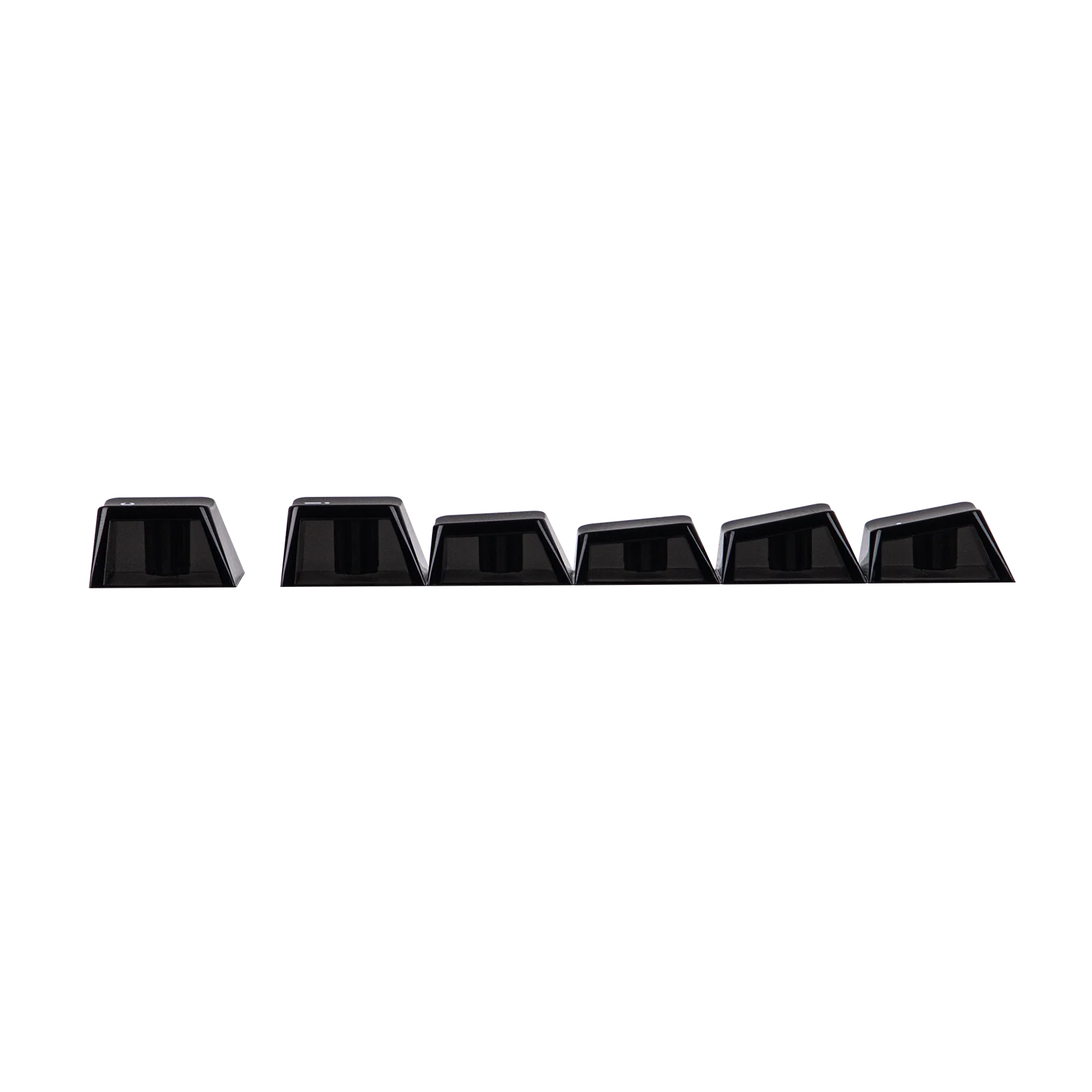

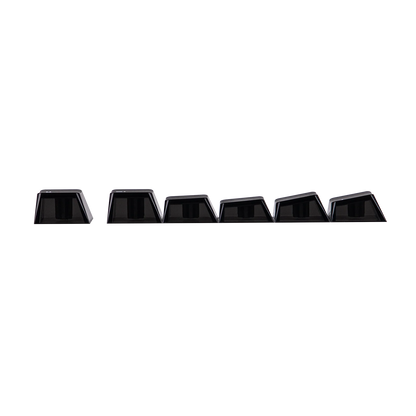

Keycaps Profile: Cherry Profile Keycap

Keycaps Material: PBT Plastic

Keycaps Manufacturing Technique: Double-Shot

Switch: Factory Lubed Magnetic Linear Switch

Hall Effect Accuracy: 0.005mm

Rapid Triggering: Yes

Snap Key (SOCD): Yes

DKS: Yes

Hall Effect Switch Deadzone: 0-0.3mm

Hot-Swappable: Yes, the HE108 magnetic keyboard has a hot-swappable PCB and is compatible with same mainstream hall effect switches.

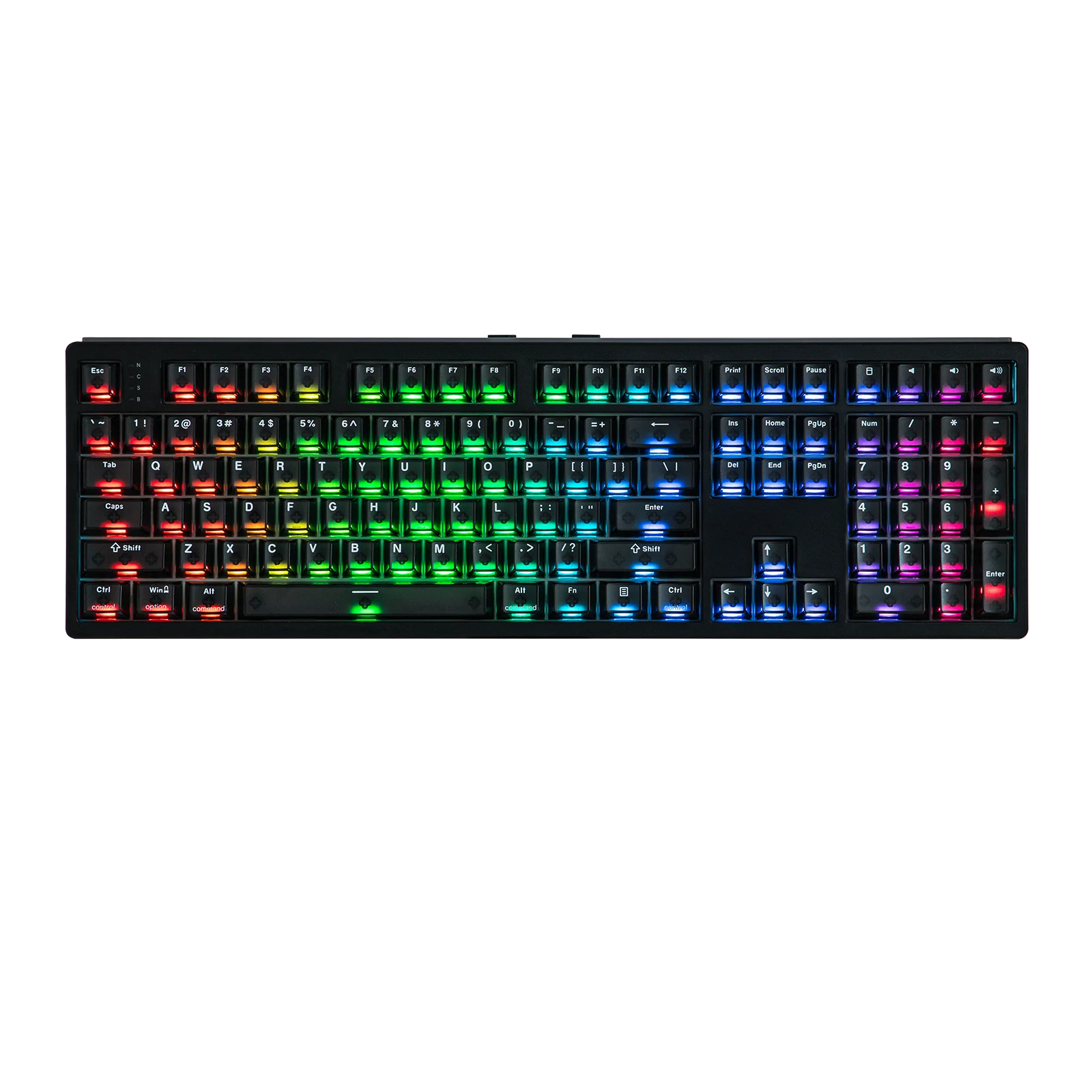

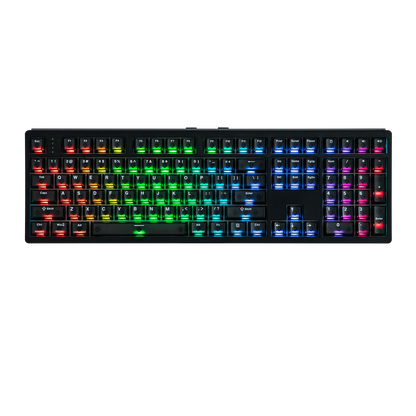

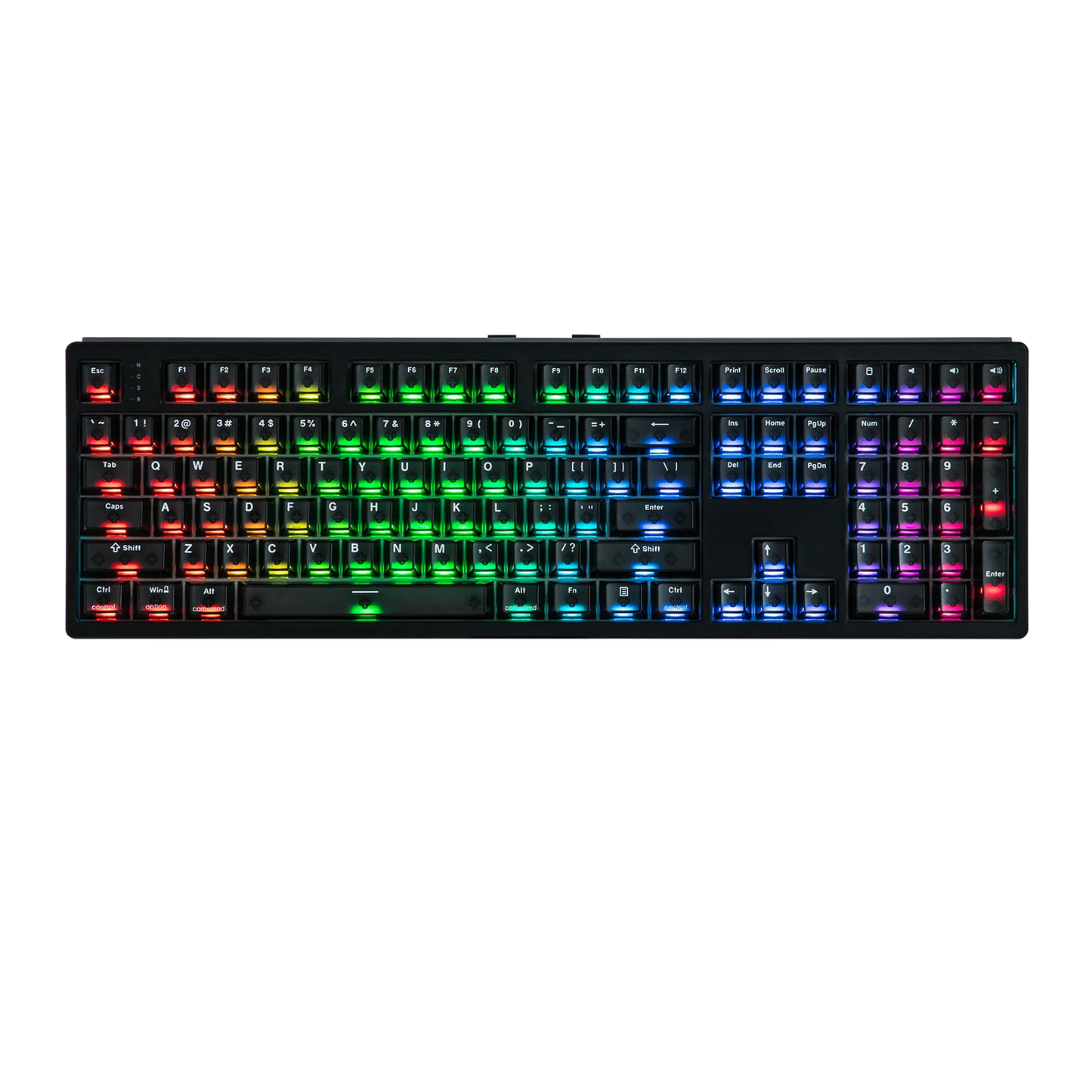

RGB: South-Facing, Per-Key LEDs

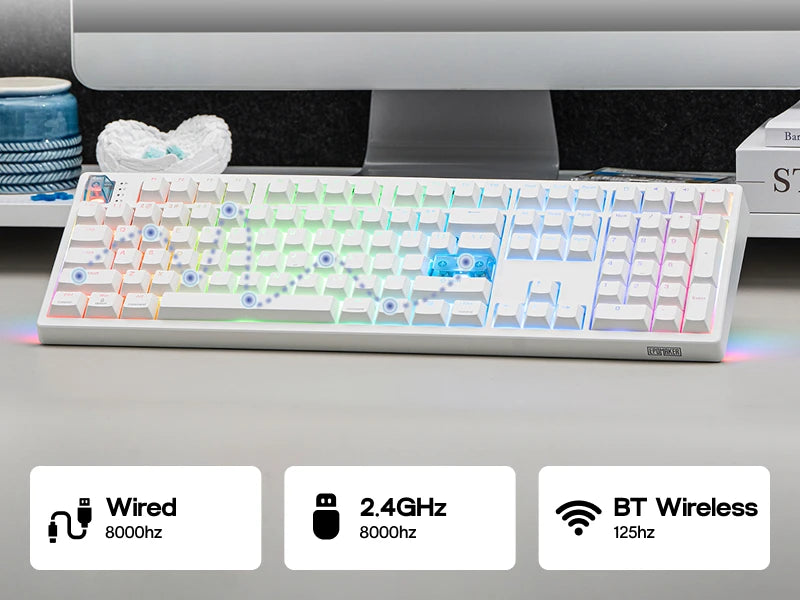

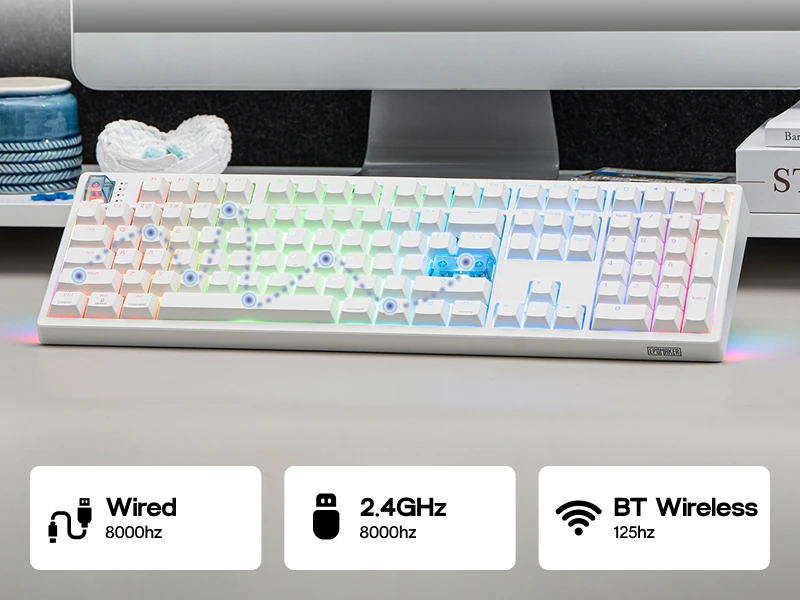

Polling Rate: 8000hz in USB and 2.4Ghz mode, and 125hz in BT mode.

Scan Rate: 16,000hz (full board), 128,000 (per key)

Latency: 0.2ms (USB), 0.4ms (2.4Ghz Wireless), 8ms (BT)

Anti-Ghosting: Yes, the HE108 hall effect keyboard supports N-key rollover and is anti-ghosting.

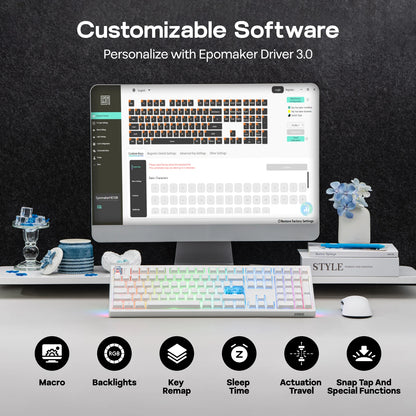

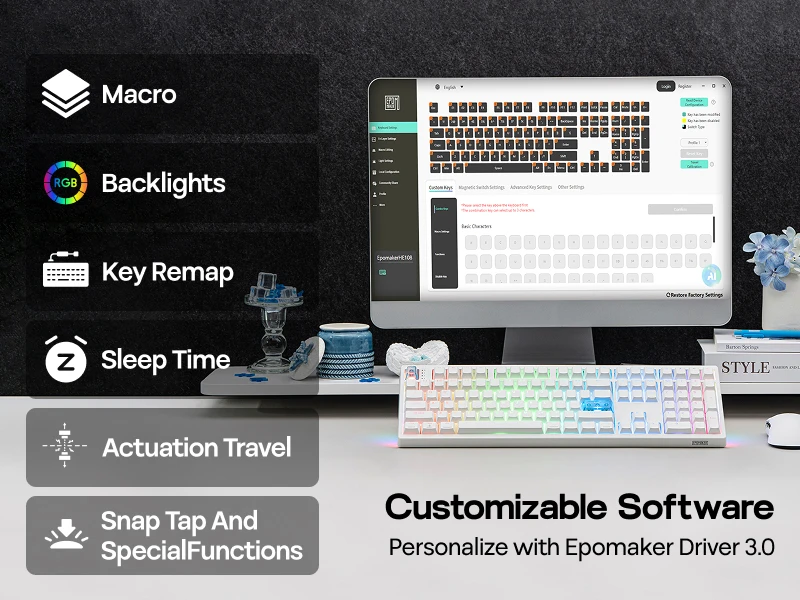

Custom Software: Yes, the HE108 is compatible with EPOMAKER Driver 3.0 (Epomaker driver v4) for key map, macro recording, rgb settings and special settings of hall effect switch such as DKS, SOCD, MT, rapid trigging and deadzone.

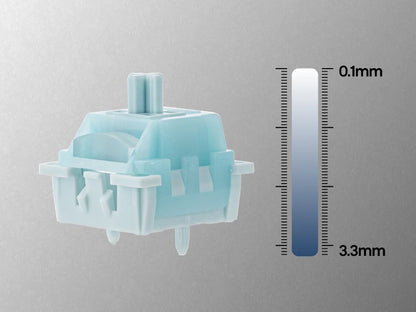

Specifications for EPOMAKER Creamy Jade Mag Switch:

Switch Type: Hall Effect Magnetic Switch

Initial Force: 30gf Min

Bottom-out Force: 55gf Max

Initial Magnetic Flux (if PCB=1.6mm): 95±15GS

Bottom Magnetic Flux (if PCB=1.6mm): 580±50GS

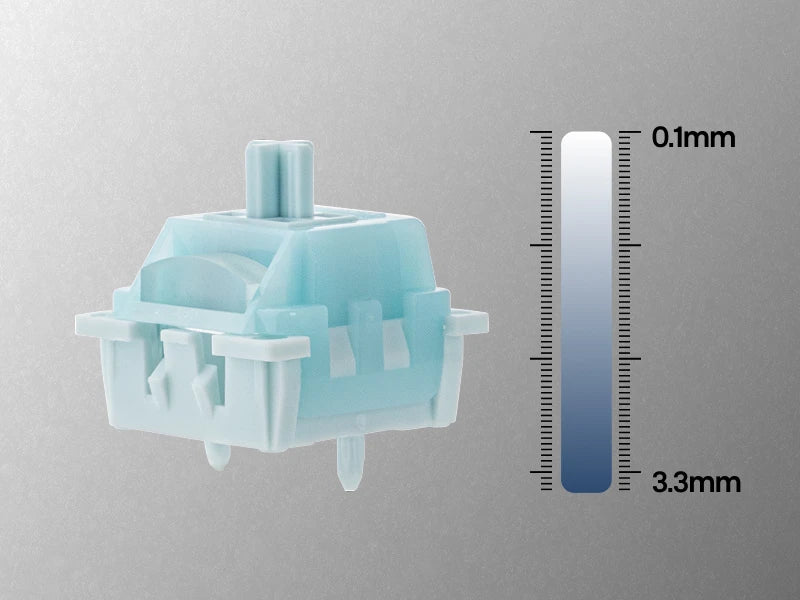

Trigger Travel: Adjustable per 0.005mm, from 0.1mm to 3.3mm

Total Travel: 3.3±0.1mm

Top Case: PC, Transparent

Bottom Case: PA66

Stem/Kone: POM

Light Diffuser/Light Pipe: Yes, with transparent acrylic light diffuser

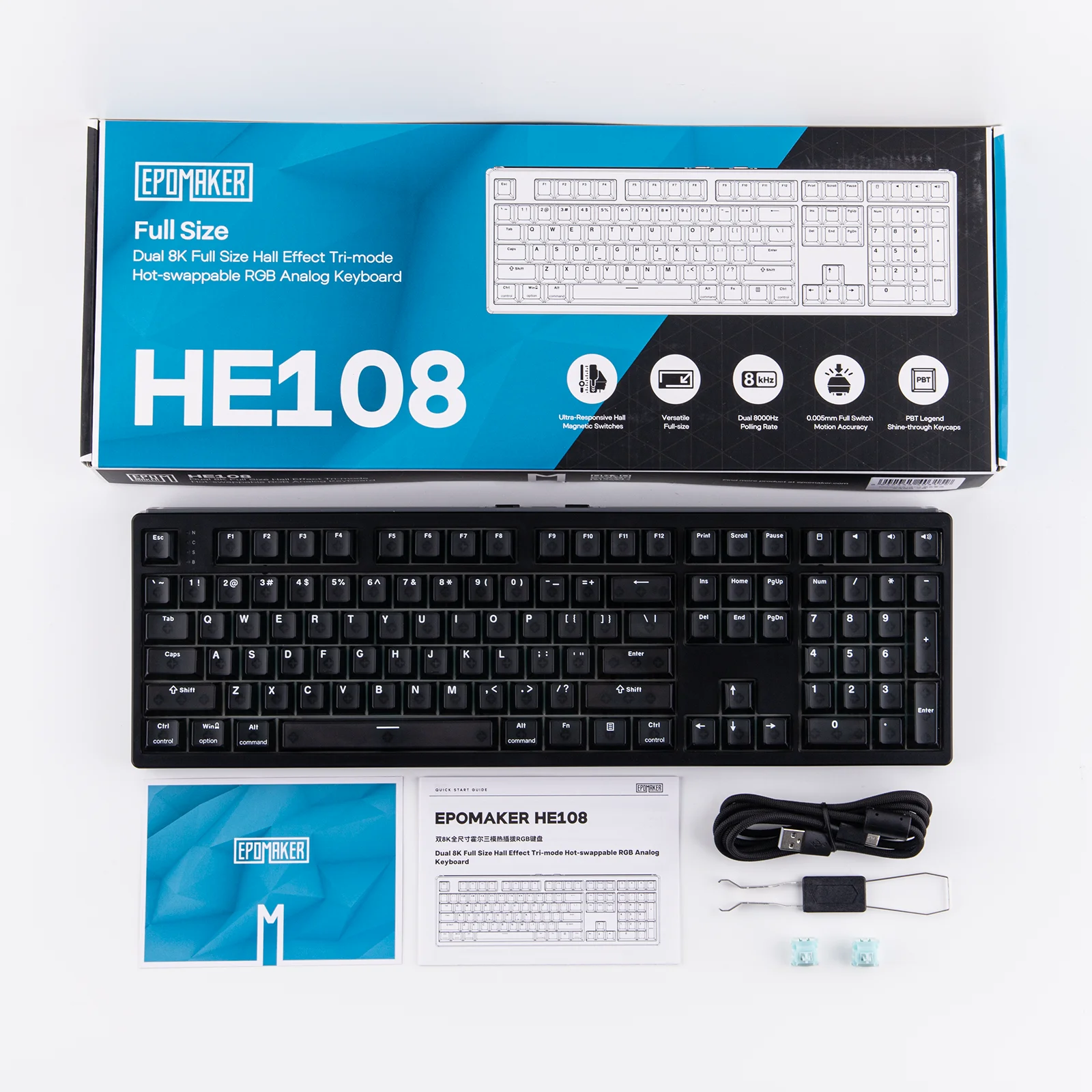

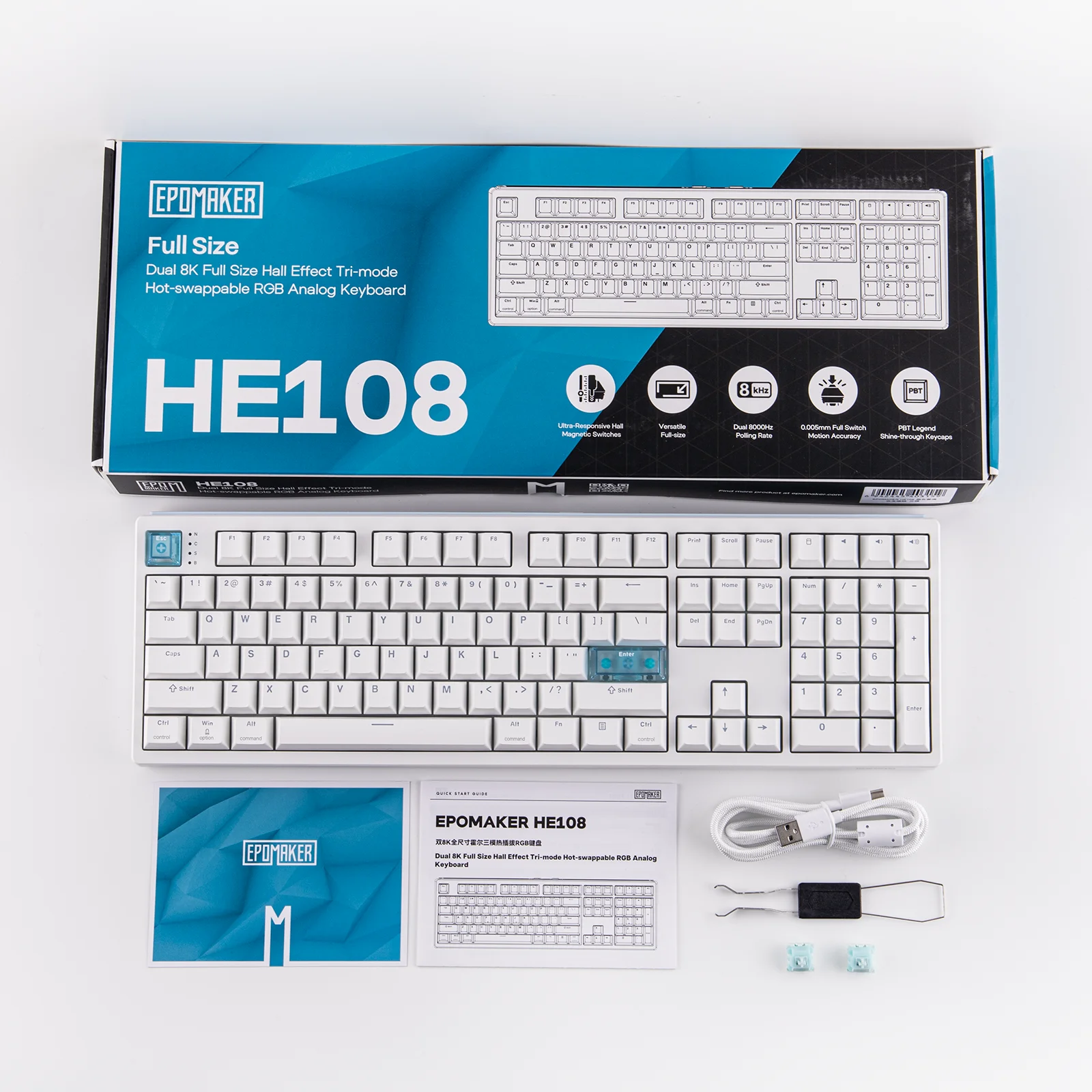

Package Content:

The HE108 Full Sized Gaming Keyboard

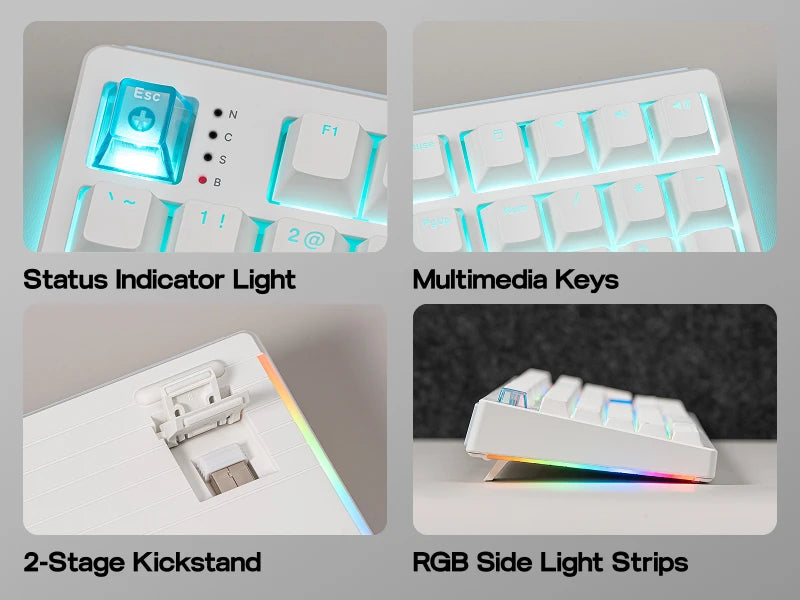

The detachable USB A-to-C Cable and a wireless 2.4Ghz Receiver (Stored under the Left Kick-Stand)

Extra Switch and a 2-in-1 Switch-and-Keycap Puller

The Summarized Multilingual Manual and the Product Card
